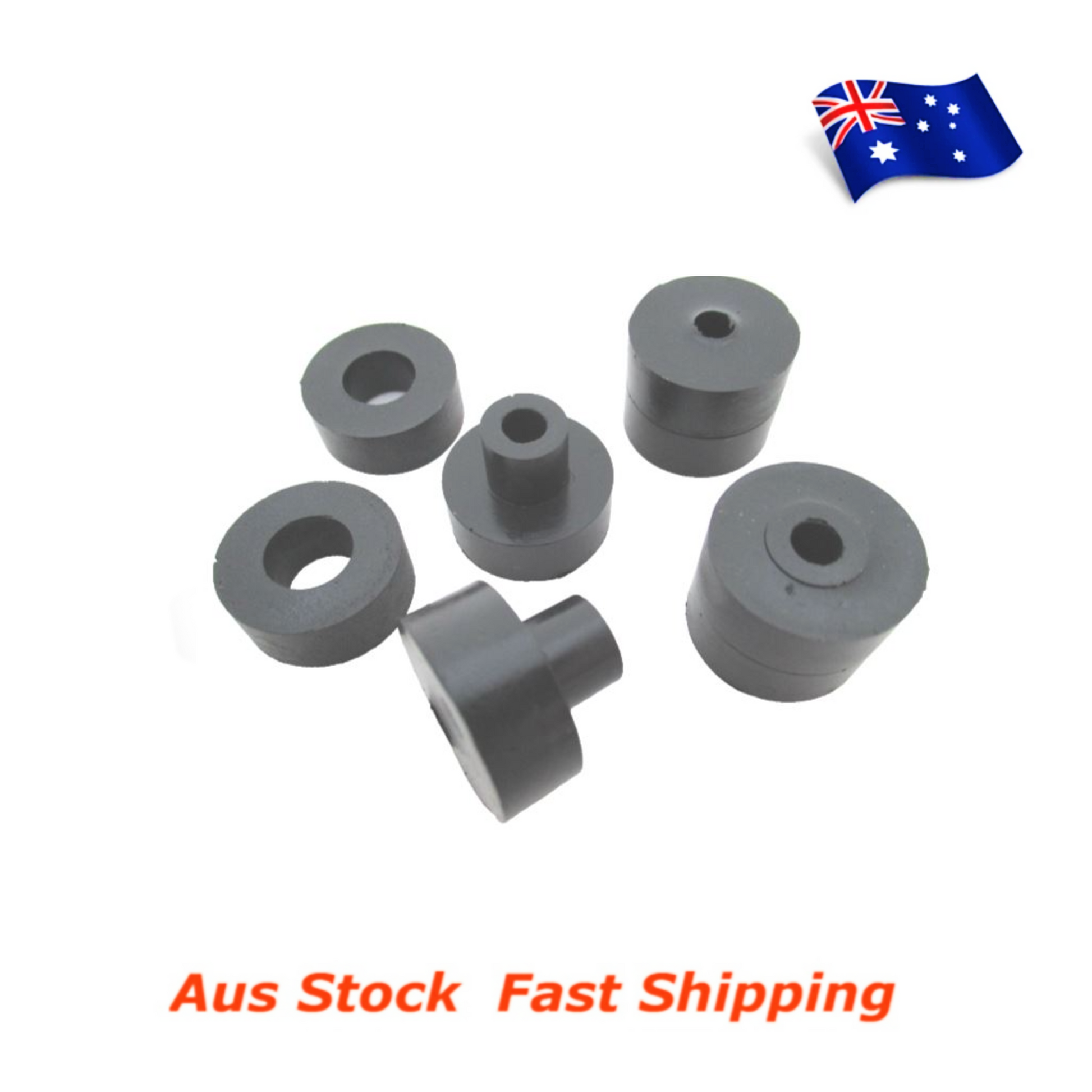

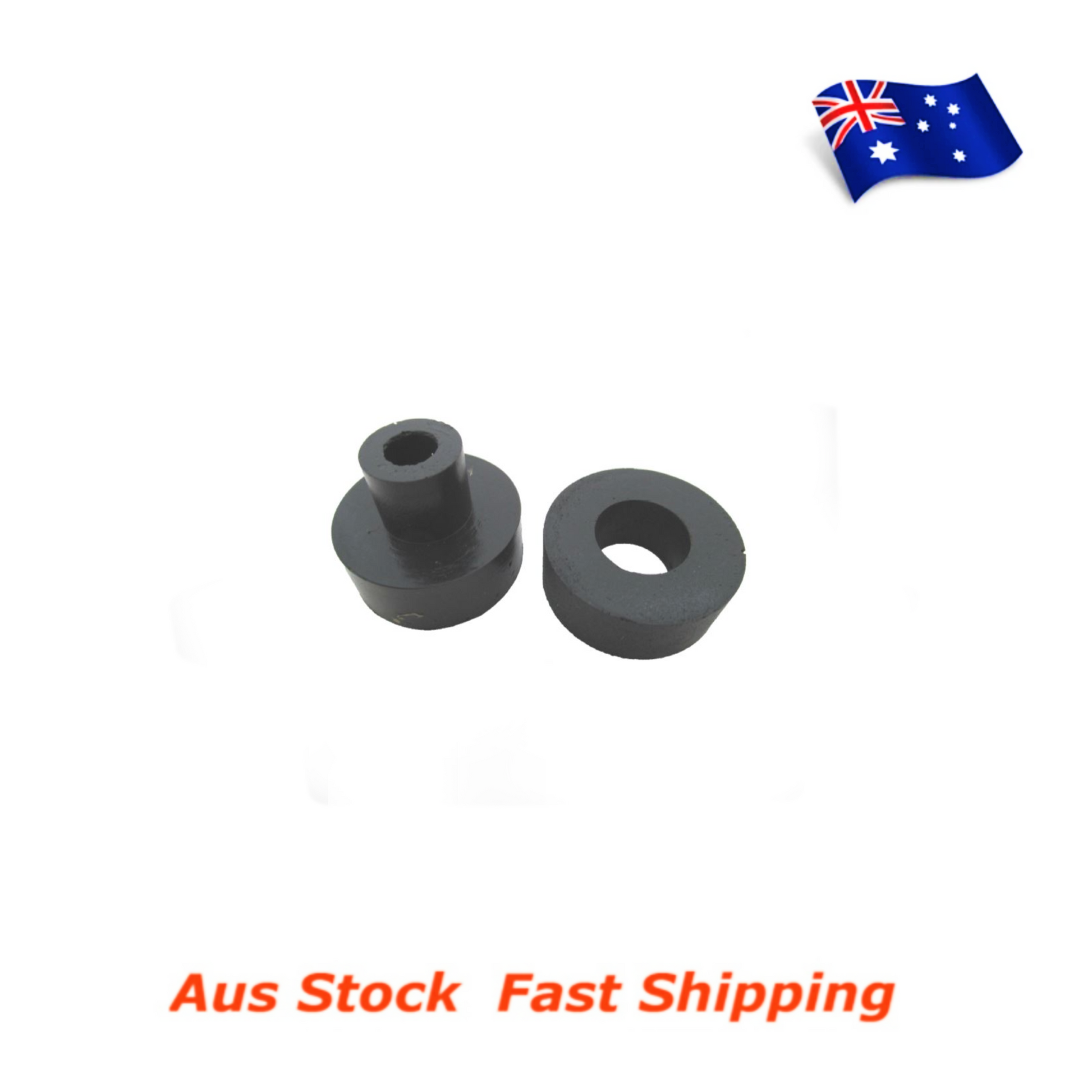

Sorbothane Isolator Vibration Bushings 25mm 1 Inch Diam 50 Durometer 4pc
Sorbothane Isolator Vibration Bushings 25mm 1 Inch Diam 50 Durometer 4pc
Regular price
$49.99 AUD
Regular price
Sale price
$49.99 AUD
Unit price
per
Couldn't load pickup availability
- Multi purpose two-part soft isolation bushing made of Sorbothane
- Use to isolate suspended equipment or multi-directional shock and vibration control
- Combines shock absorption, good memory, vibration isolation and vibration damping characteristics. Stable with a long fatigue life.
- Sandwich either side of mounting hole to "float " the fixing bolt
- What's in the box, pack of 4 two part bushings
- Made of 50 Durometer Shore 00
- Low creep rate compared to other polymers. Superior damping coefficient over wide temperature range. Can absorb shock efficiently for millions of cycles.

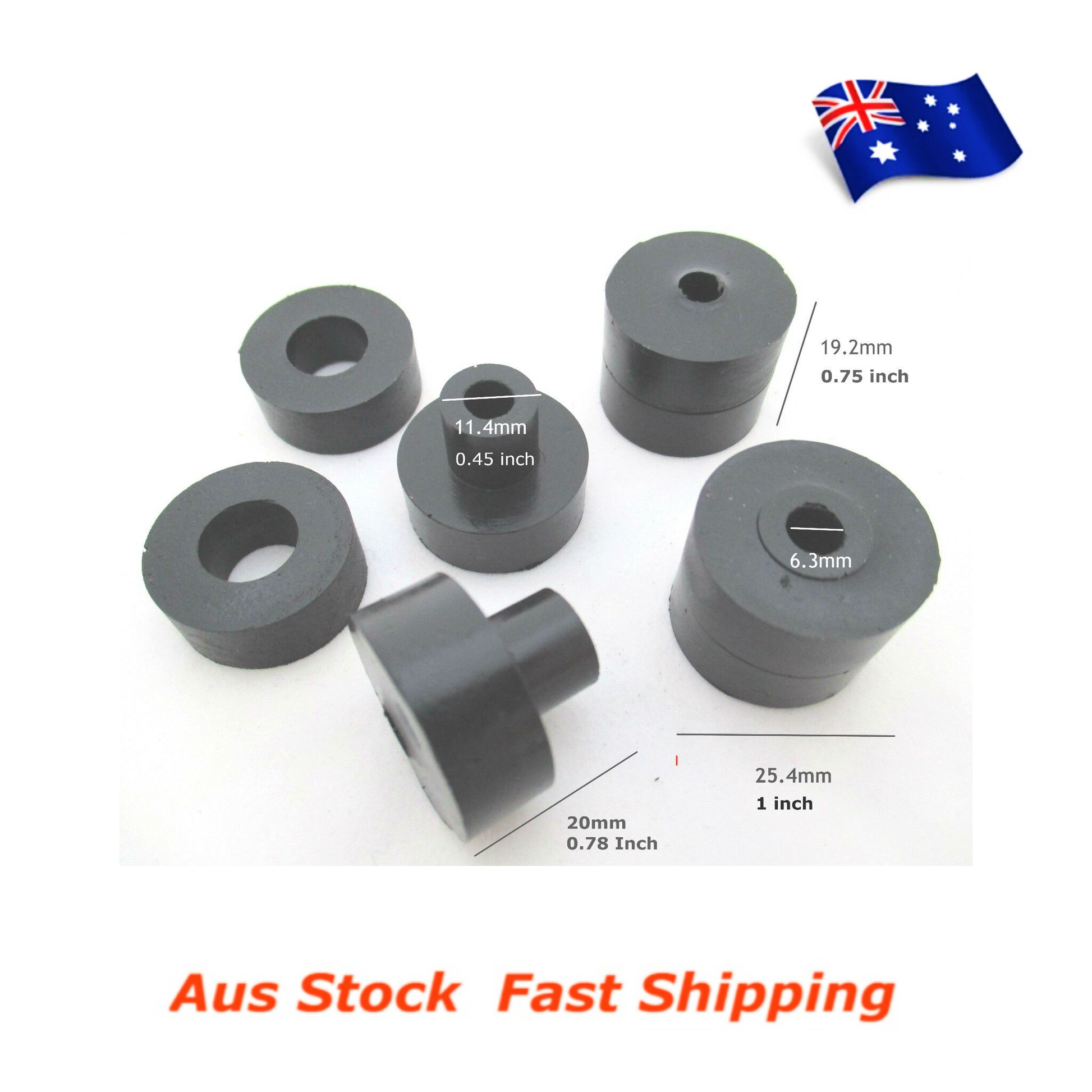

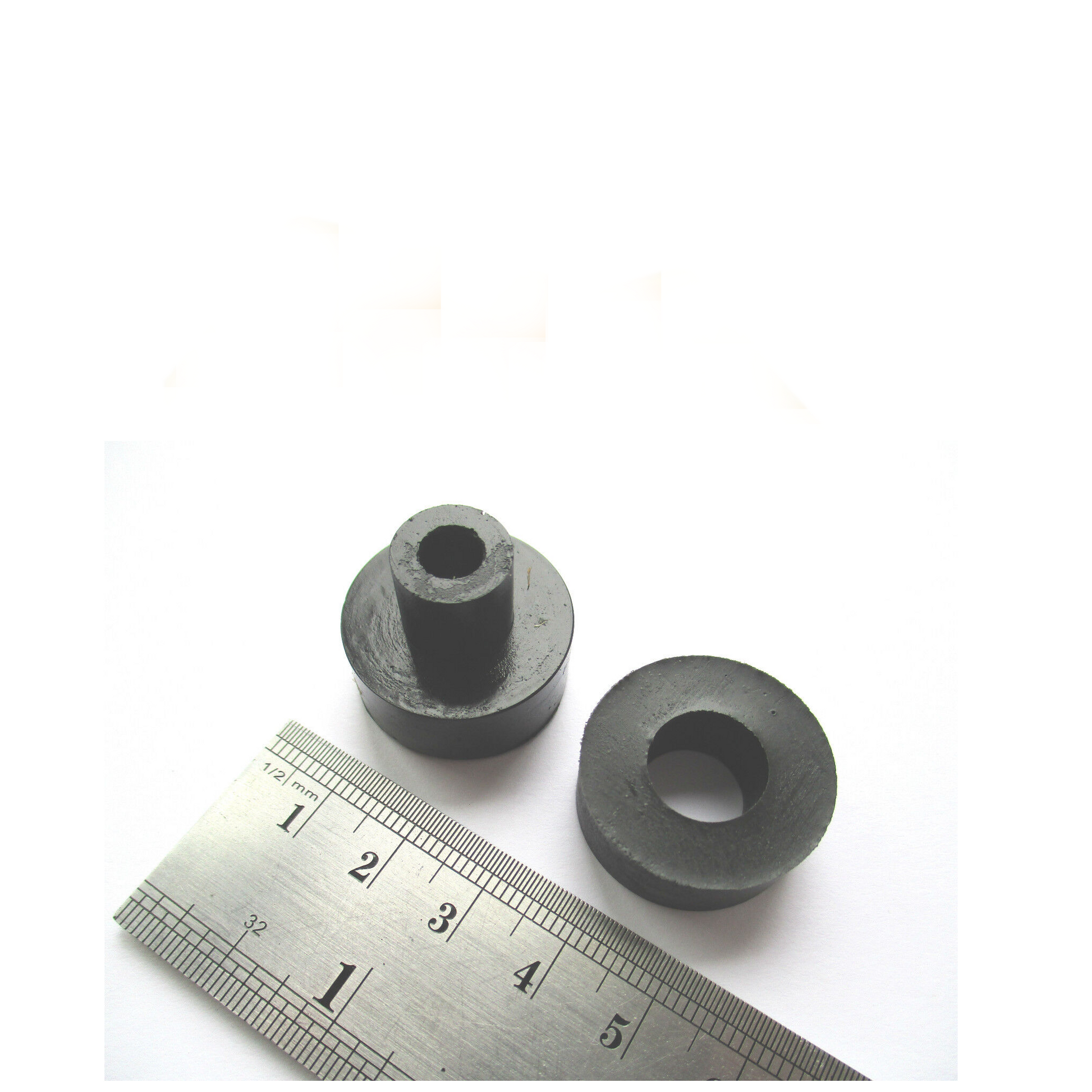

- Male Core:
- A 25.4mm outer diam
- B Core diam. 11.4mm
- C Flange height 9.6mm
- D Inner hole diam.6.3
- E Overall height 20mm
- Washer:
- A 25.4mm outer diam
- C Height 9.6mm
- D Hole diam. 11.4mm
- Load per mount: 3-5kg
- Load rating assumes a 10%-20% deflection of the material by a combination of system weight and torquing of the connecting bolts.
- All specifications shown herein are typical values and are not guaranteed. It is recommended to test in application for suitability.
