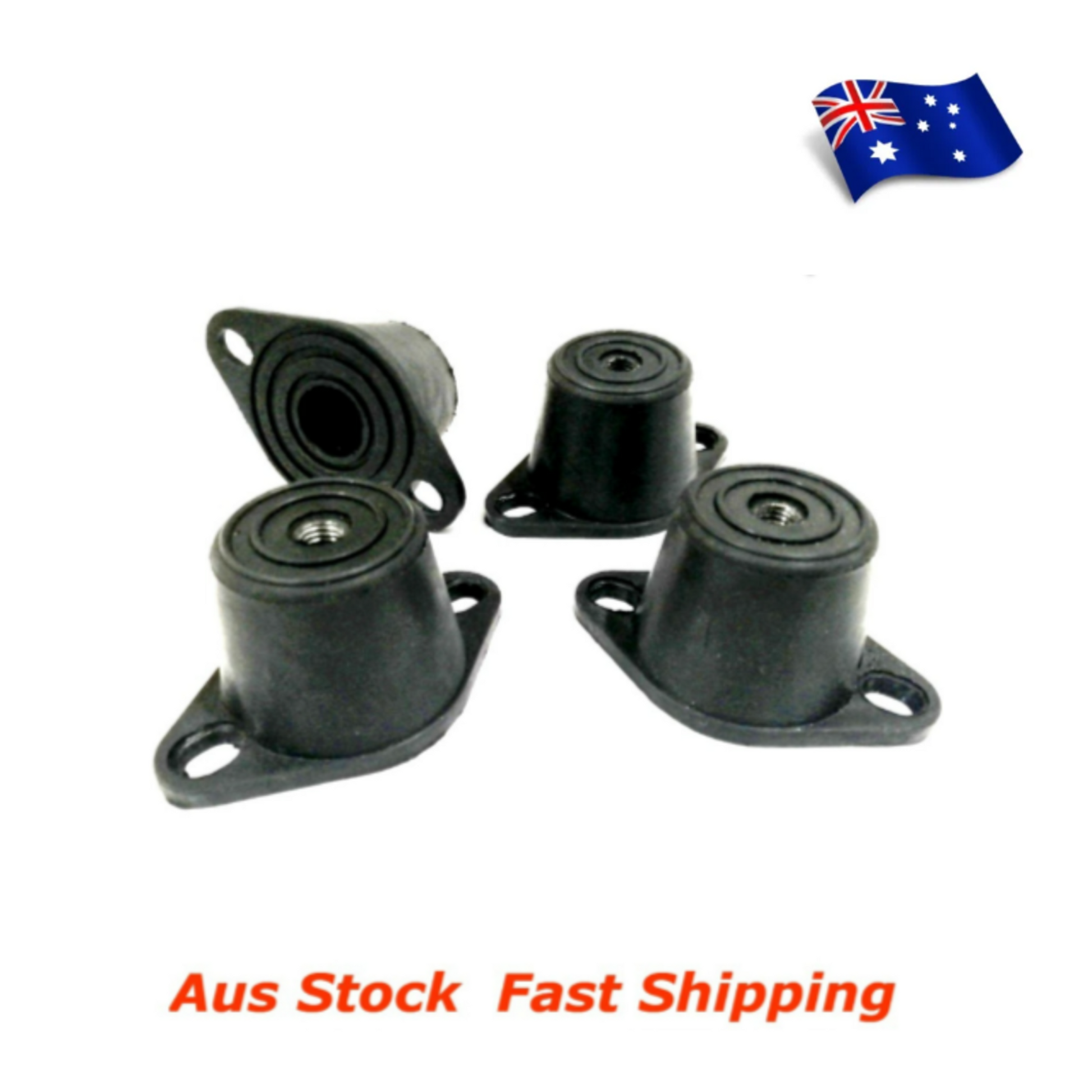

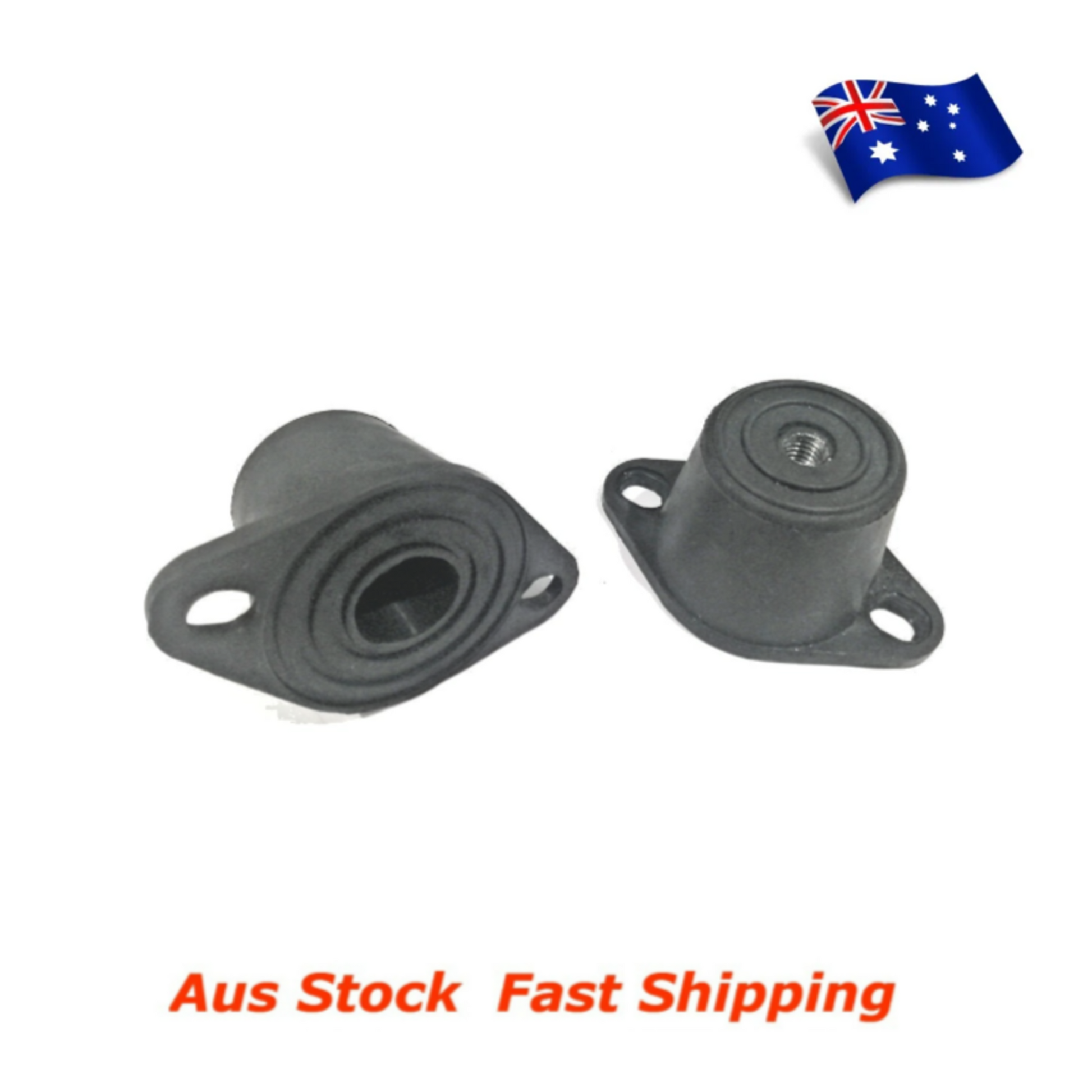

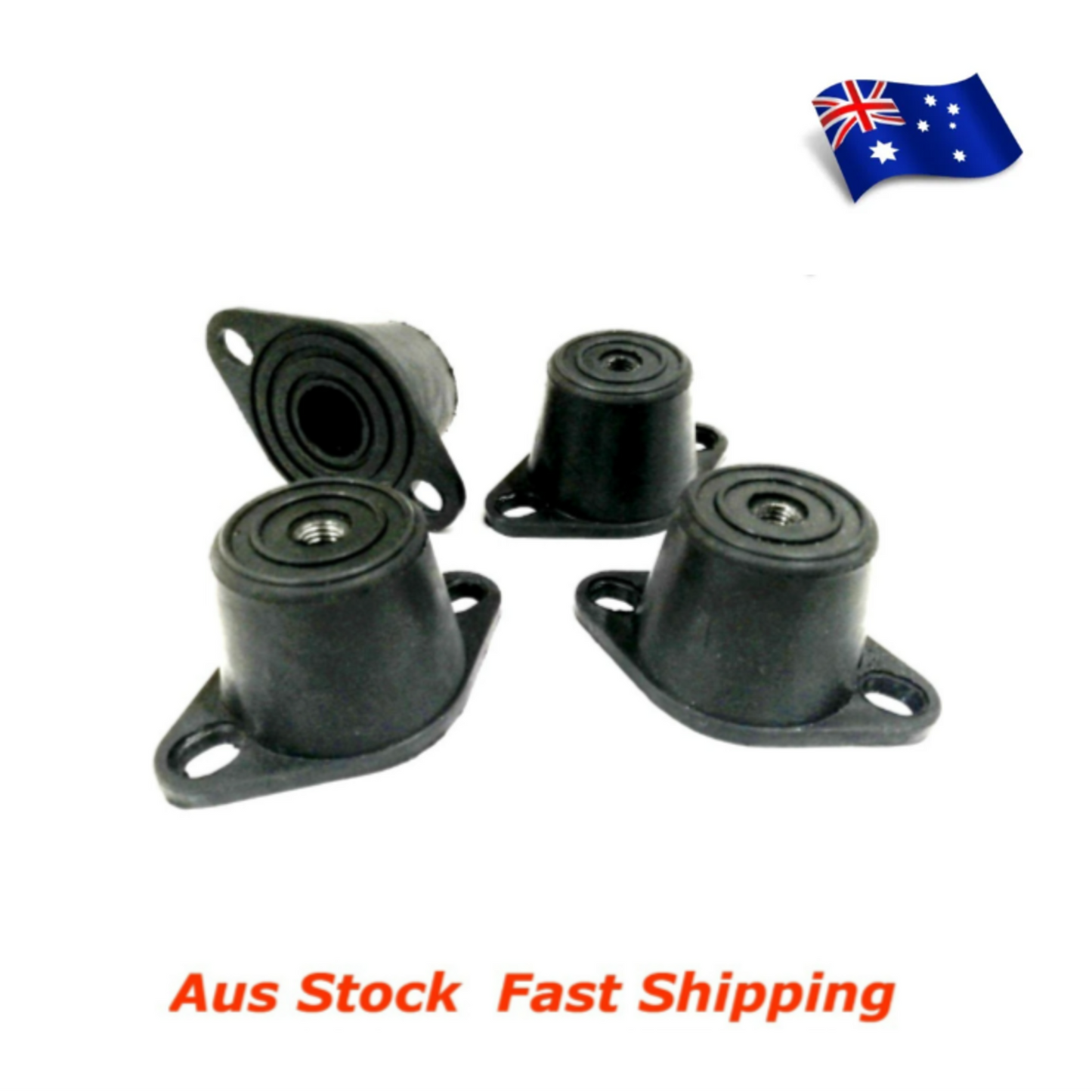

M8 Rubber Encapsulated Flange HVAC Anti Vibration Mount

M8 Rubber Encapsulated Flange HVAC Anti Vibration Mount

$23.99 AUD
$23.99 AUD
Sale Sold out
HVAC Anti Vibration Mount  M8 Insert
Designed for the HVAC industry rated for up to 65kg per mount
High levels of deflection, allowing for good levels of vibration reduction , even at low running speeds.
Encapsulated to reduce corrosion
Easy fixing with 2 X base mounting holes
  • What's in the box: 1 X rubber mount
  • A: Base length 80mm
  • B: Distance between mounting holes 54-60mm
  • C: Flange width 45mm
  • D: Mounting hole width 9mm
  • E: Mounting hole length 12mm
  • F: Overall height 32mm
  • G: Flange thickness 5mm
  • H: Turret width at widest point 41mm
  • I: Mounting hole M8
  • Maximum compressive load: 65kg
  • Maximum Deflection: 8mm
  • Hardness Shore: A 55
  • Please note: All specifications shown herein are typical values and are not guaranteed. It is recommended to test in application for suitability.
