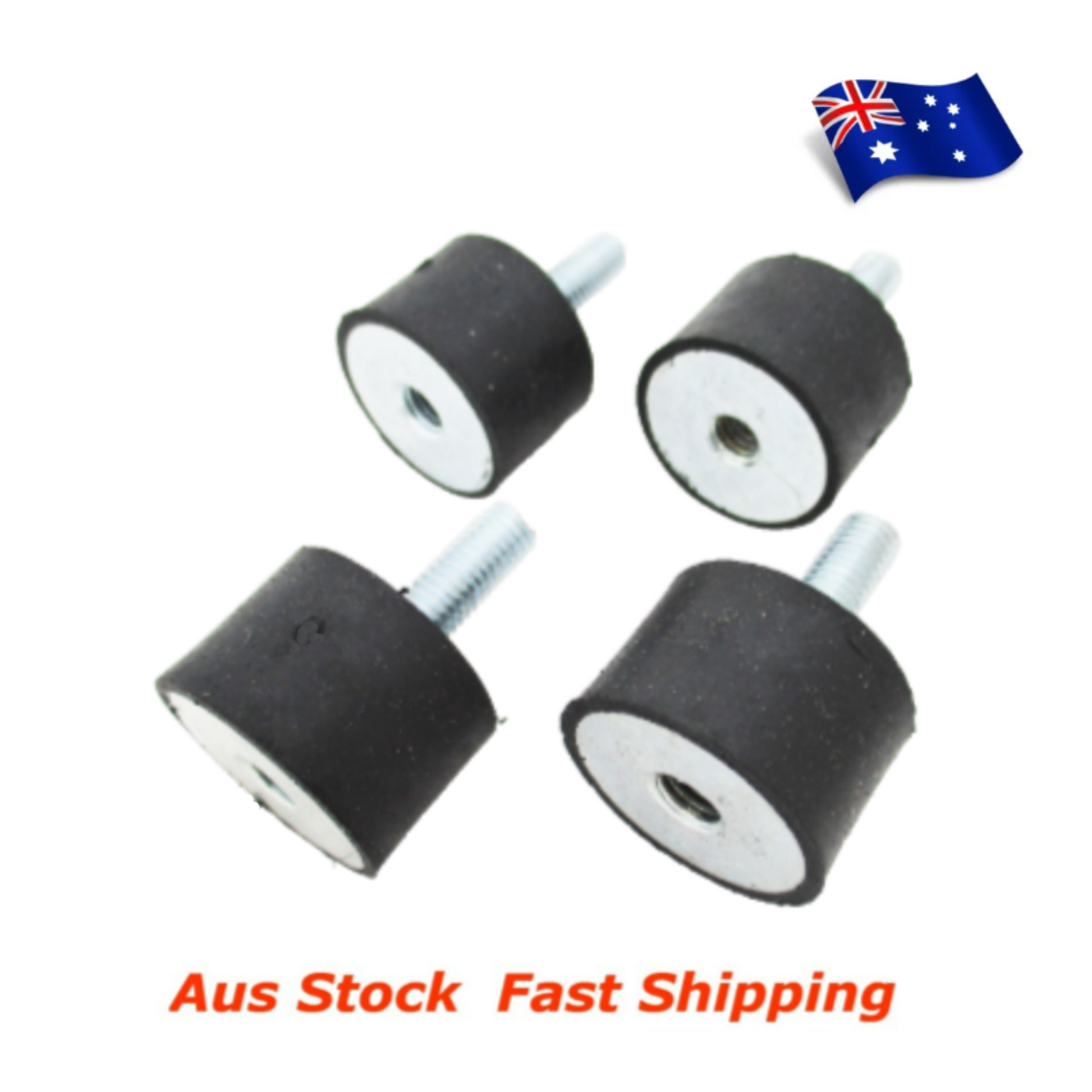

M8 Rubber Anti Vibration Mount Bobbin 30x20mm Male Female MF

Durable M8 vibration mount specially designed for soundproofing and isolating pumps, motor and car parts, small compressors and generators, light machinery, large electronics

• Withstands sudden temp changes
• Used in either compression or shear or a combination
• Simple stable design
• Zinc Plated Corrosion Resistant
  metals (RoHS Compliant)
• Ease of Installation
• Excellent levels of vibration absorption
• Shore A 60 rubber
• Suits compressive load per mount up to 39kg

• D: 30mm diam
• H: 20mm height
• d1: M8 thread
• d: insert 8mm deep
• L: pin length 20 mm

Please note: Dimensions can vary, they are typical only. All specifications shown herein are typical values and are not guaranteed. It is recommended to test in application for suitability. We reserve the right to alter specification or withdraw products without notice
