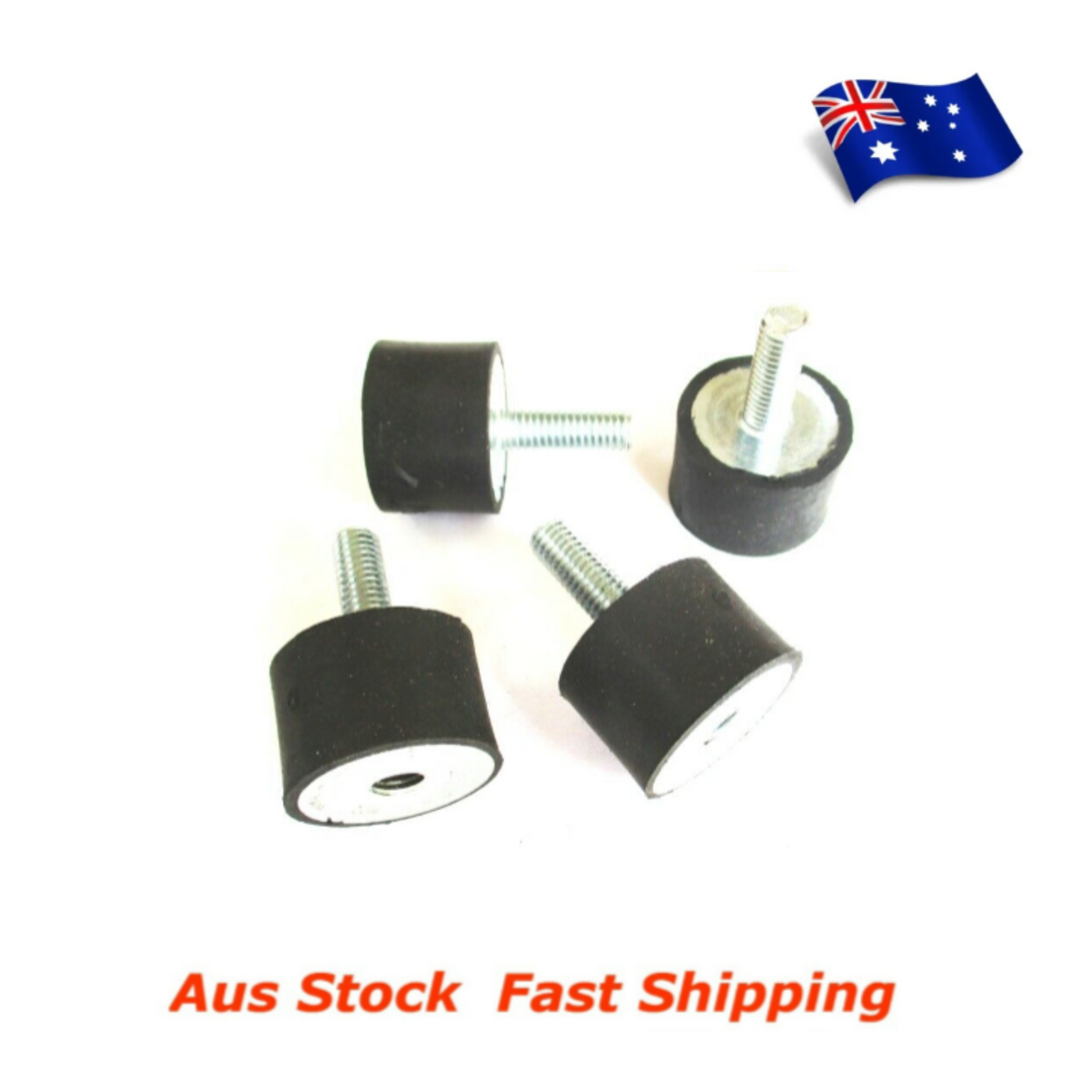

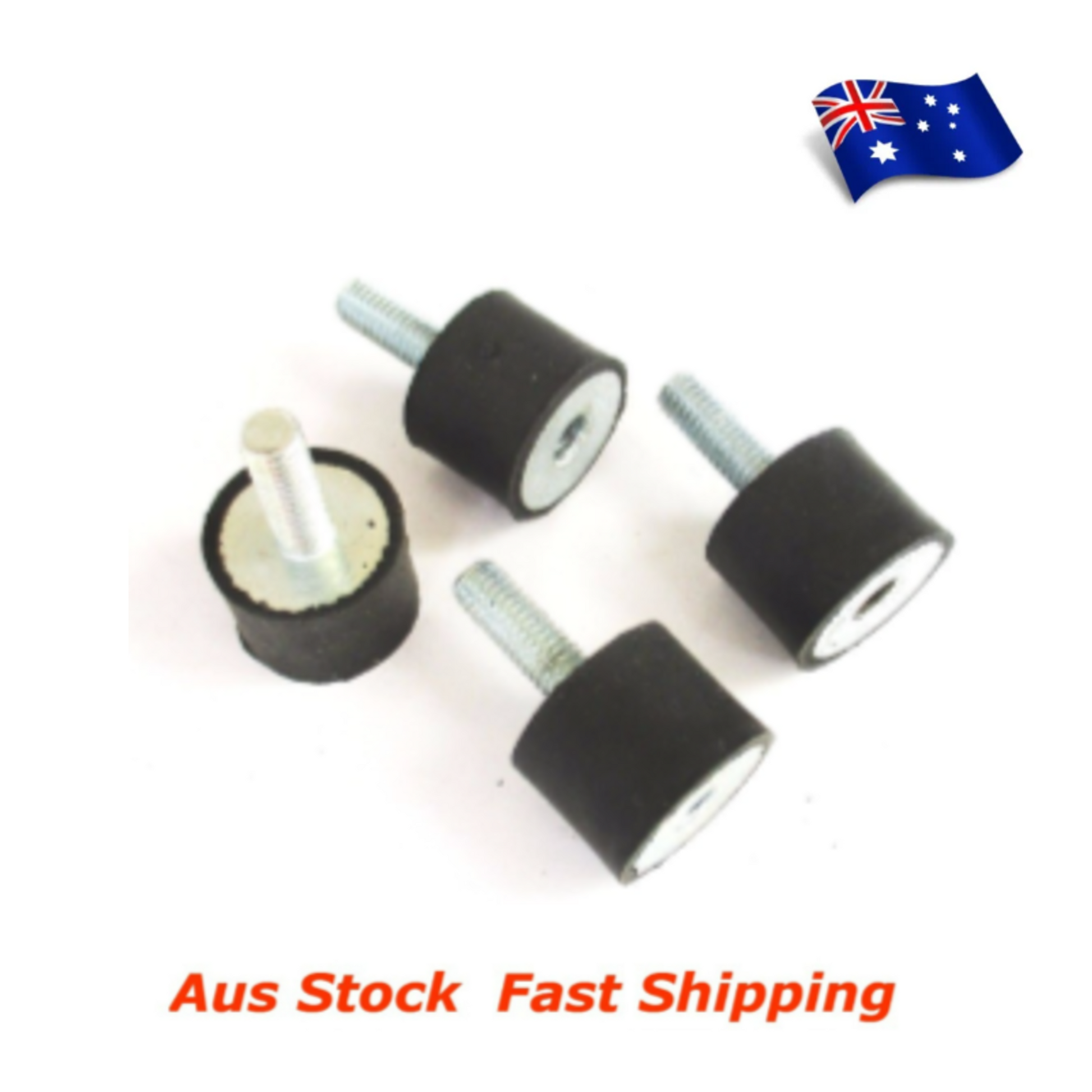

M6 Rubber Anti Vibration Rubber Bobbin Mount 20x20 Male Female MF

Durable M6 vibration mount specially designed for soundproofing and isolating auto and car parts, small pumps, electrical equipment light machinery.

• Withstands sudden temp changes
• Used in either compression or shear or a combination
• Simple stable design
• Zinc Plated Corrosion Resistant
  metals (RoHS Compliant)
• Ease of Installation
• Excellent levels of vibration absorption
• Shore A 60 rubber
• Suits compressive load per mount up to 13.4kg

• D: 20mm diam
• H: 20mm height
• d: M6 thread
• L: pin length 18 mm

Please note: Dimensions can vary, they are typical only. All specifications shown herein are typical values and are not guaranteed. It is recommended to test in application for suitability. We reserve the right to alter specification or withdraw products without notice
