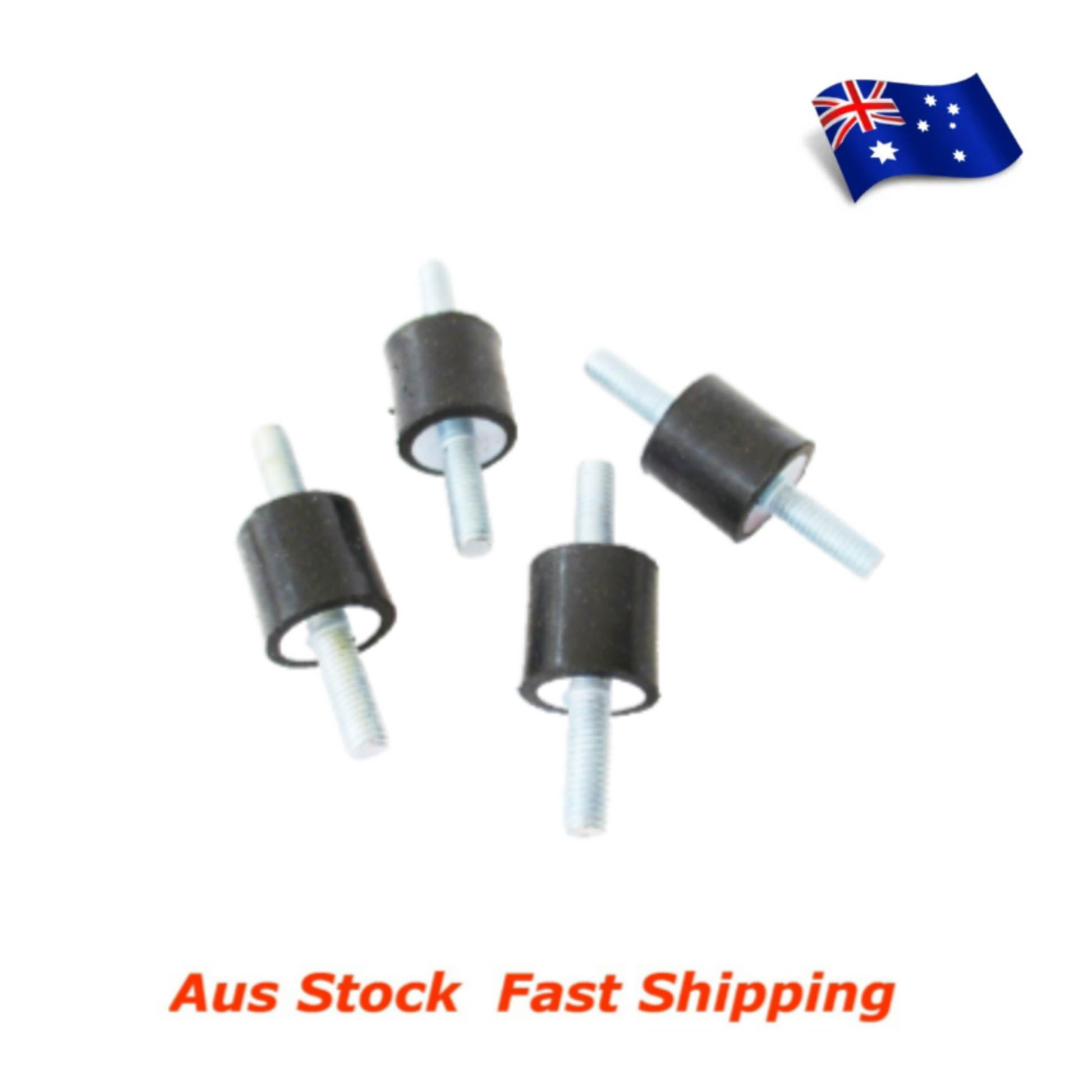

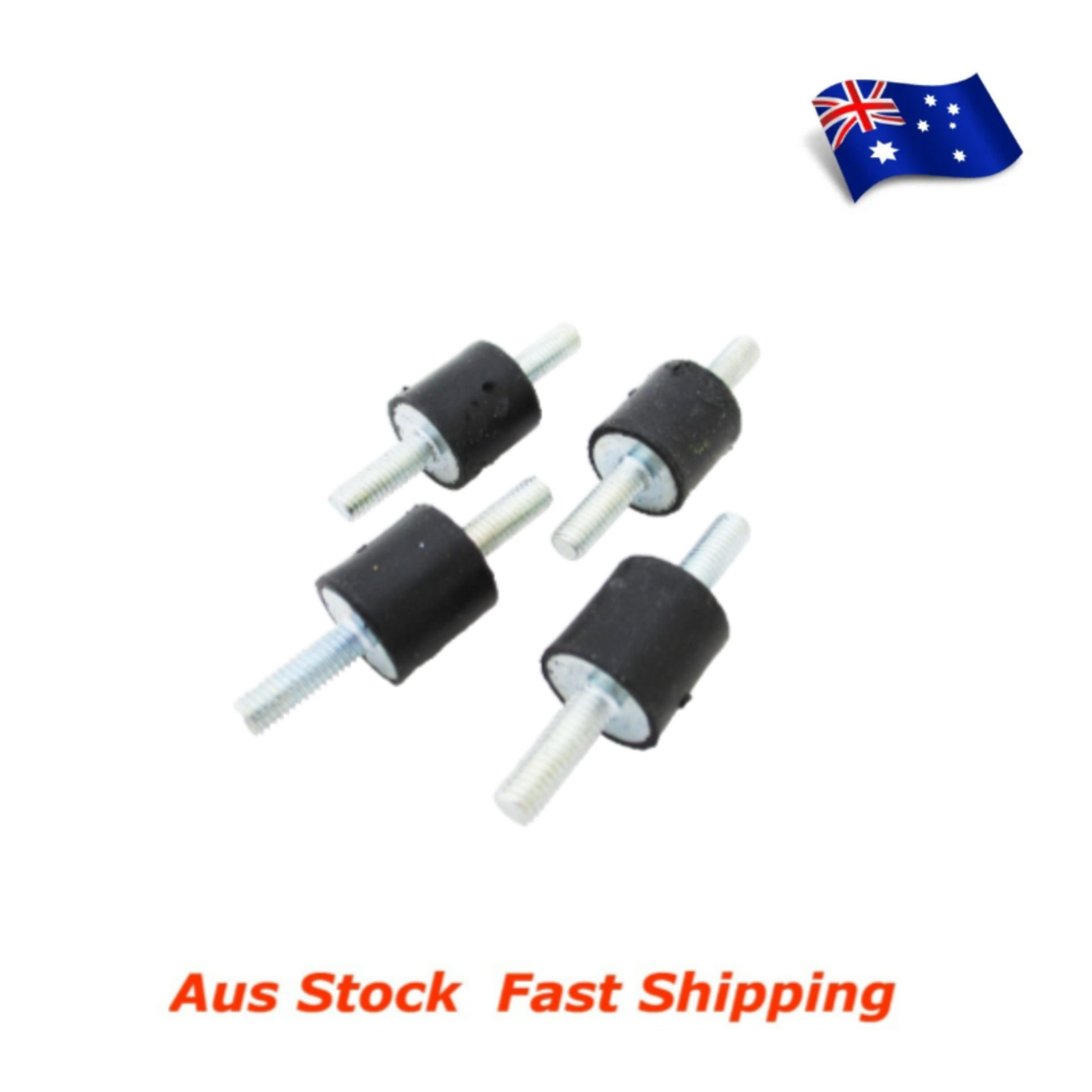

M5 Rubber Anti Vibration Bobbin Mount 15x15mm Male Male MM

Durable M5 vibration mount specially designed for isolating small components, drone camera's and small electronics

• Withstands sudden temp changes
• Used in either compression or shear or a combination
• Simple stable design
• Zinc Plated Corrosion Resistant
  metals (RoHS Compliant)
• Ease of Installation
• Excellent levels of vibration absorption
• Shore A 60 rubber
• Suits compressive load per mount up to 10.7kg

• D: 15mm diam
• H: 15mm height
• d: M5 thread
• L: pin length 15 mm

Please note: Dimensions can vary, they are typical only. All specifications shown herein are typical values and are not guaranteed. It is recommended to test in application for suitability. We reserve the right to alter specification or withdraw products without notice
