M12 Marine Engine Anti Vibration Flange Mount
M12 Marine Engine Anti Vibration Flange Mount
Regular price
$26.99 AUD
Regular price
Sale price
$26.99 AUD
Unit price
per
Couldn't load pickup availability

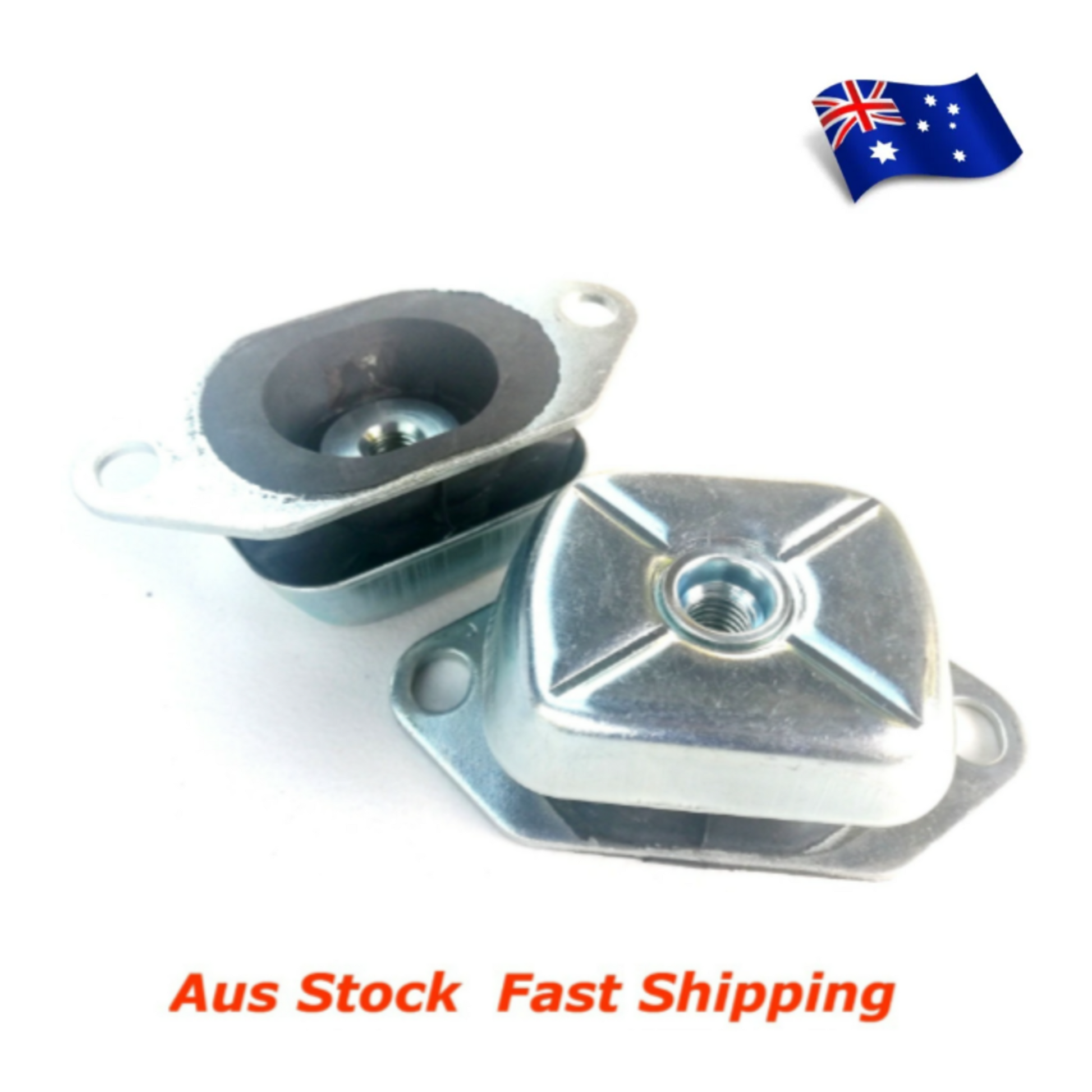

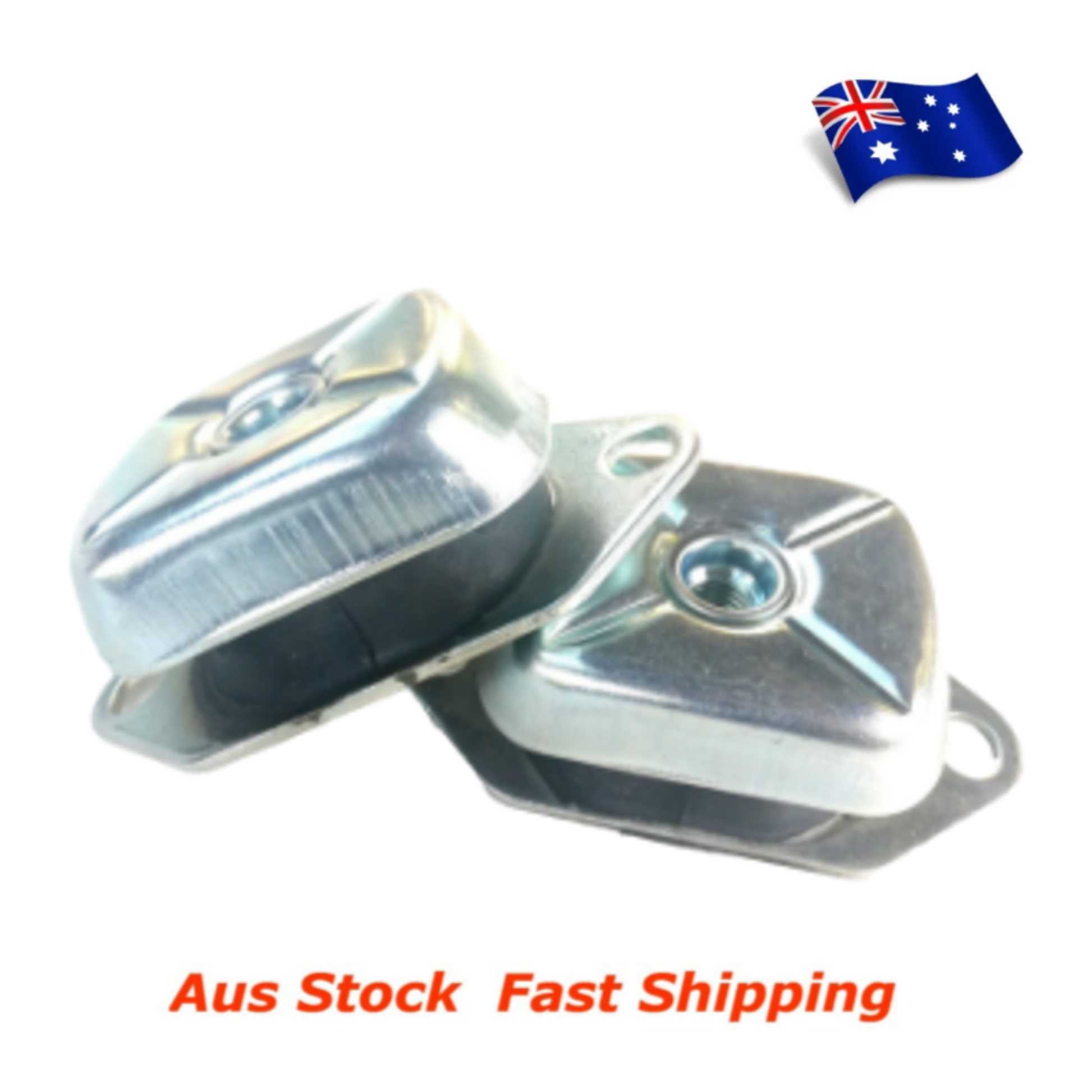

M12 Marine Engine Vibration Mount
Designed for Marine propulsion engines to accommodate thrust
Designed for Marine propulsion engines to accommodate thrust
Different stiffness in each axis, optimum performance for marine engines
Good vibration and shock absorption to prevent damage
Also for generators, pumps, compressors
Easy fixing with 2 X base mounting holes
Easy fixing with 2 X base mounting holes
- What's in the box: 1 X mount

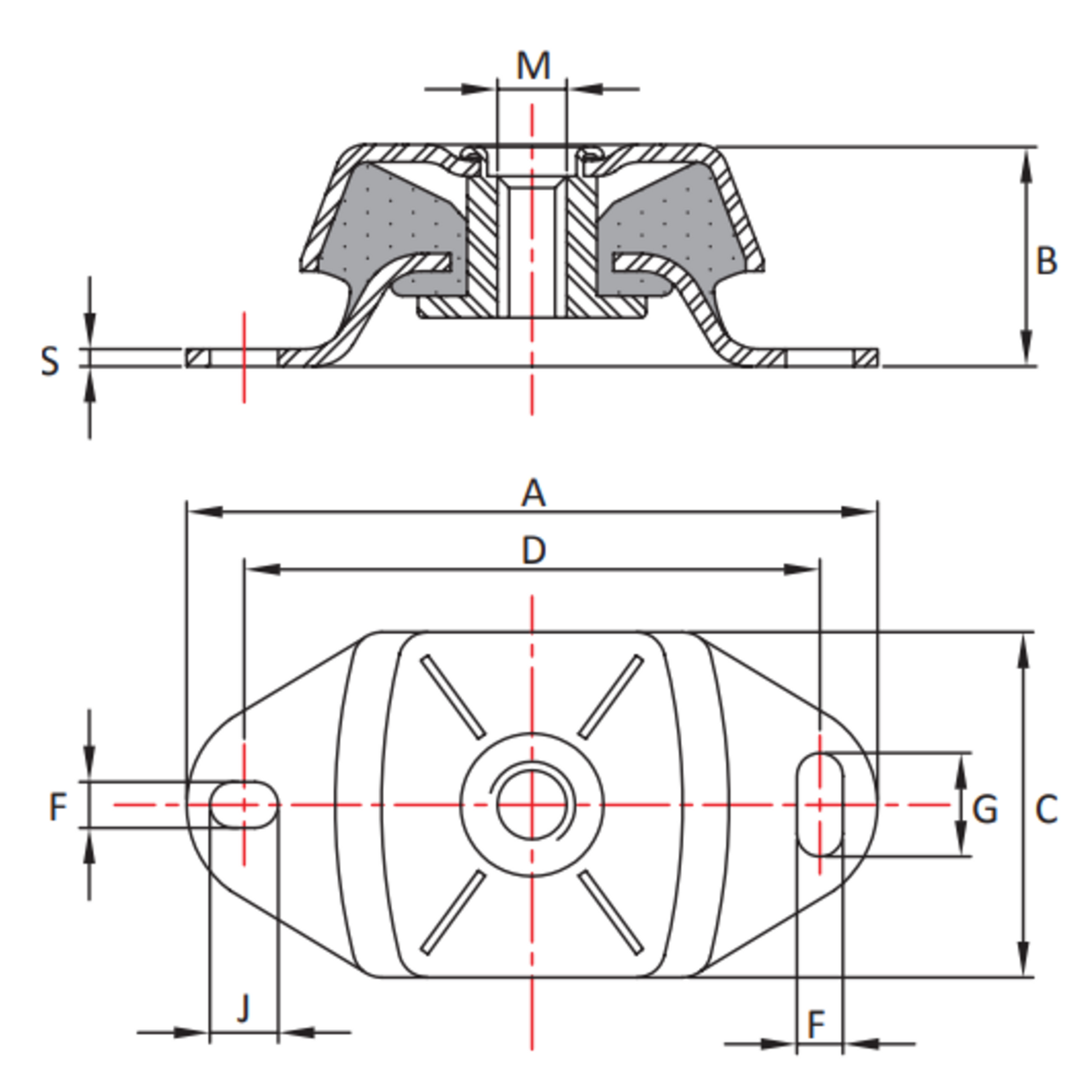

- A: Base length 120mm
- B: Overall height 38.5mm
- C: Overall width 60mm
- D: Distance between mounting holes 100mm
- F: Mounting hole width 11mm
- G: Mounting hole length 14mm
- J: Mounting hole length 11mm
- M: thread M12
- S: Flange depth 3mm
- Maximum compressive load: 75kg
- Maximum Deflection: 4mm
- Hardness Shore: A 55
-
Please note: All specifications shown herein are typical values and are not guaranteed. It is recommended to test in application for suitability.
