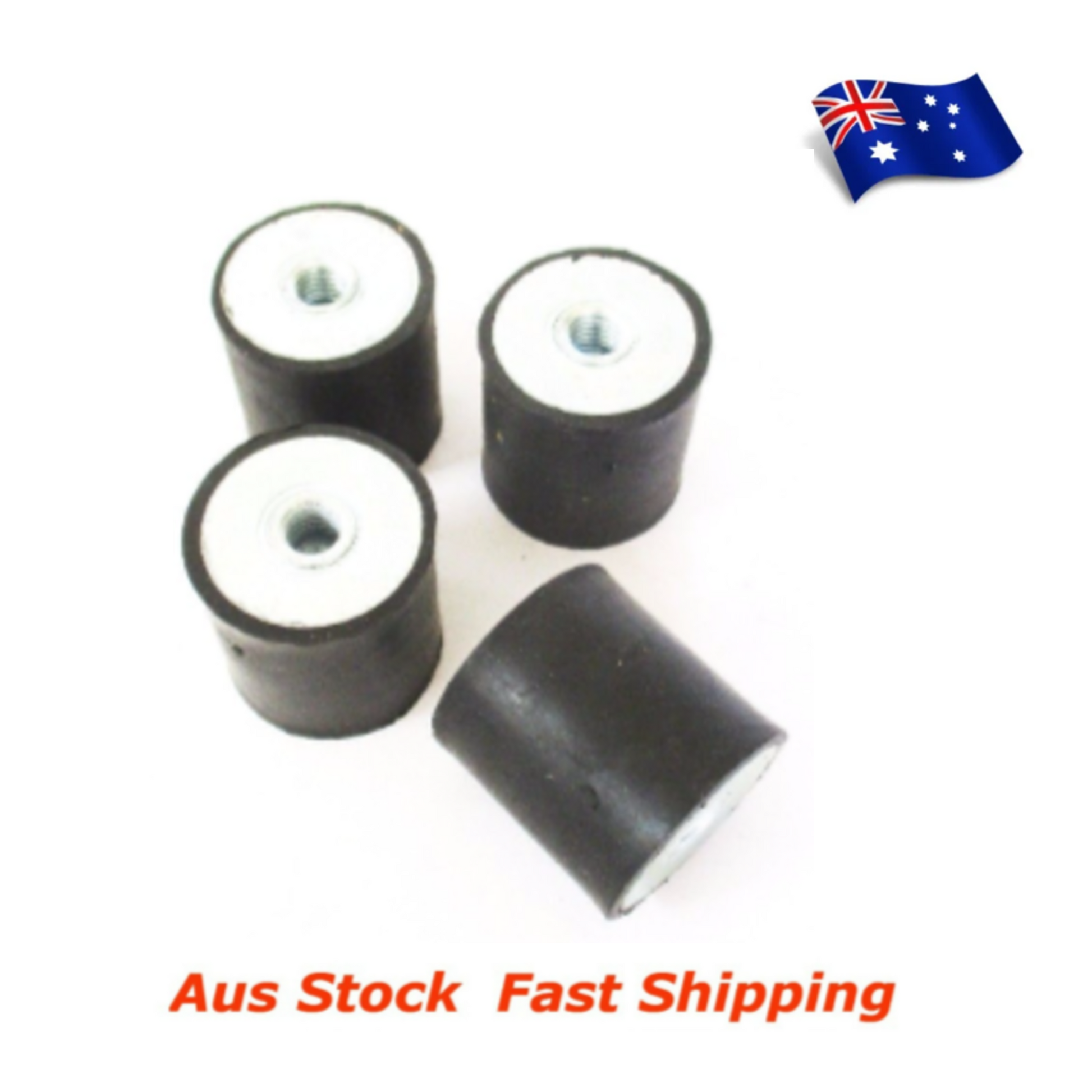

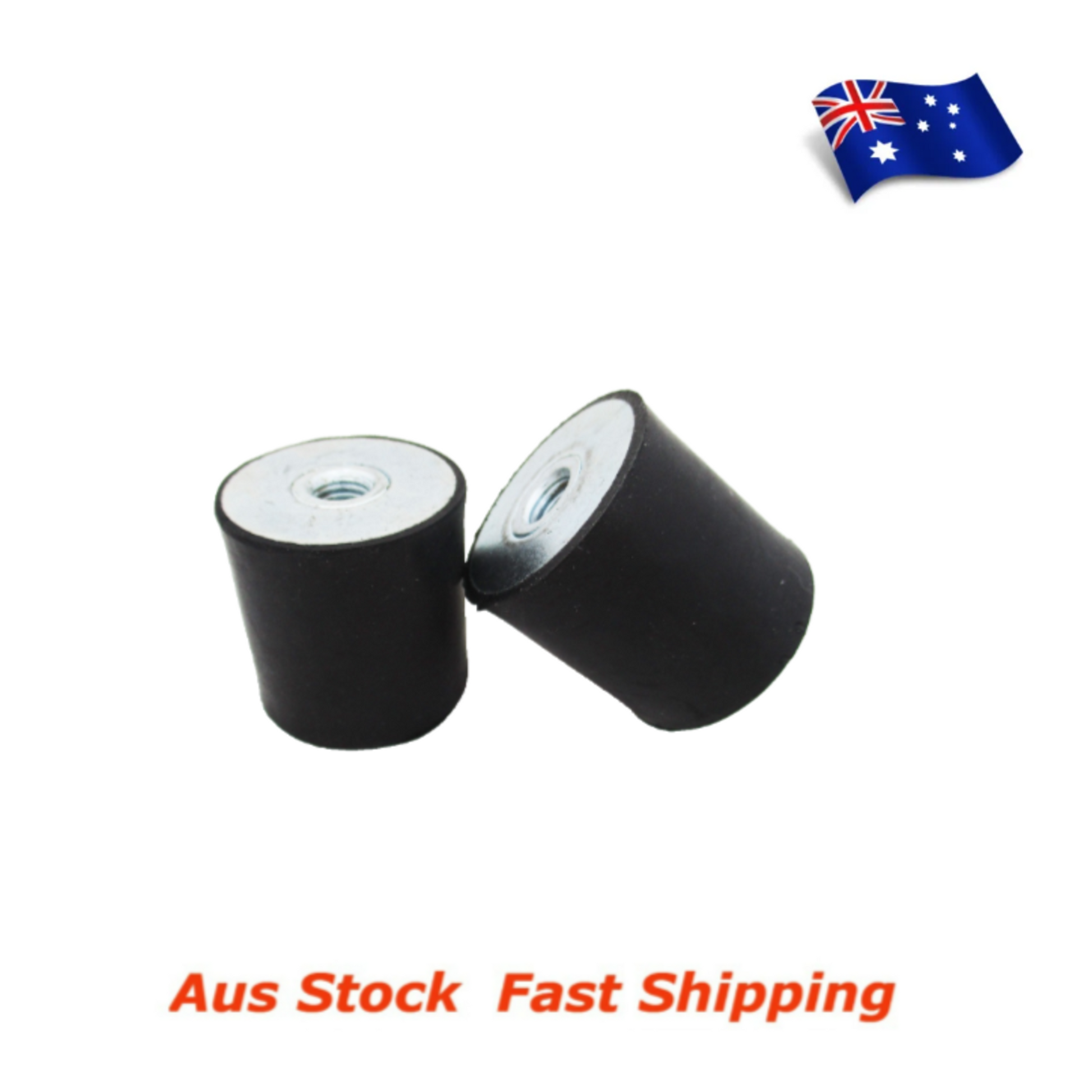

M10 Rubber Anti Vibration Mount Bobbin 40x40mm Female Female FF

Durable M10 vibration mount specially designed for soundproofing and isolating pumps, aircon units, small compressors and generators, light machinery, large electronics

• Withstands sudden temp changes
• Used in either compression or shear or a combination
• Simple stable design
• Zinc Plated Corrosion Resistant
  metals (RoHS Compliant)
• Ease of Installation
• Excellent levels of vibration absorption
• Shore A 60 rubber
• Suits compressive load per mount up to 57kg
• Deflection in mm 3.6

• D: 40mm diam
• H: 40mm height
• d: M10 thread

Please note: Dimensions can vary, they are typical only. All specifications shown herein are typical values and are not guaranteed. It is recommended to test in application for suitability. We reserve the right to alter specification or withdraw products without notice
