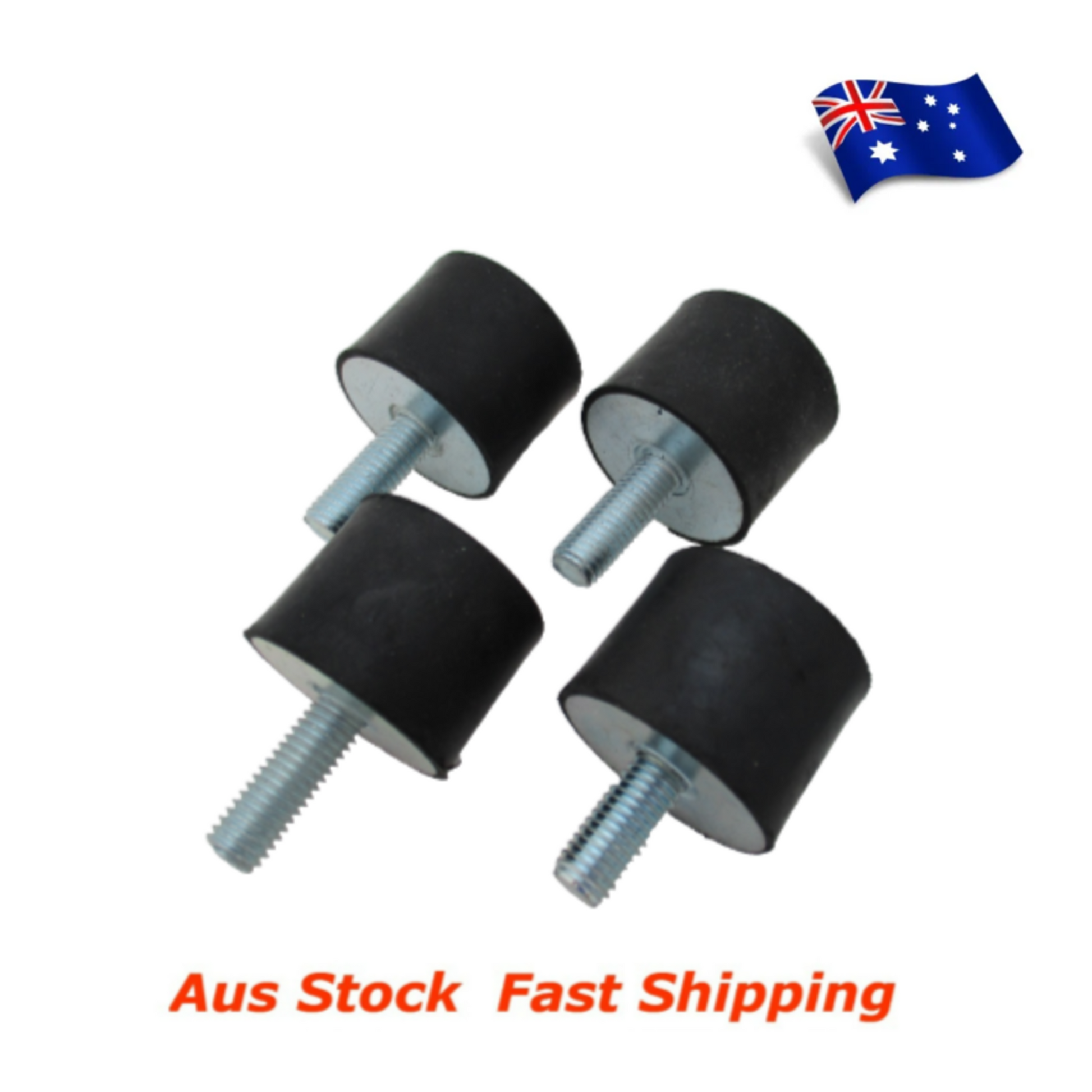

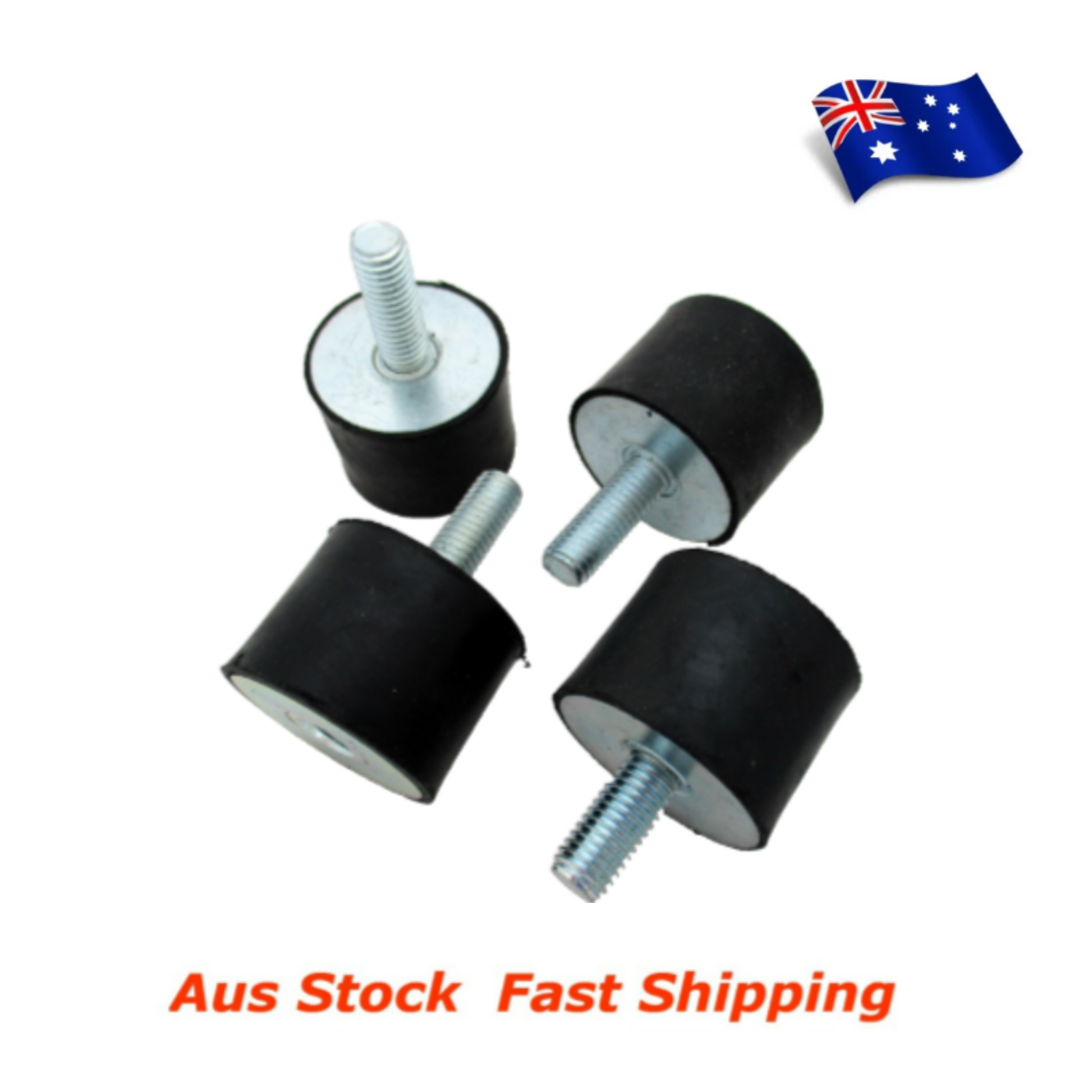

M10 Rubber Anti Vibration Mount Bobbin 40x30mm Male Female MF

Durable M10 vibration mount specially designed for soundproofing and isolating pumps, airconditioning or HVAC units, small compressors and generators, light machinery

• Withstands sudden temp changes
• Used in either compression or shear or a combination
• Simple stable design
• Zinc Plated Corrosion Resistant
  metals (RoHS Compliant)
• Ease of Installation
• Excellent levels of vibration absorption
• Shore A 60 rubber
• Suits compressive load per mount up to 64kg
• Deflection in mm 2.6

• D: 40mm diam
• H: 30mm height
• d1: M10 thread
• d: insert M10 thread
• L: pin length 25 mm

Please note: Dimensions can vary, they are typical only. All specifications shown herein are typical values and are not guaranteed. It is recommended to test in application for suitability. We reserve the right to alter specification or withdraw products without notice
