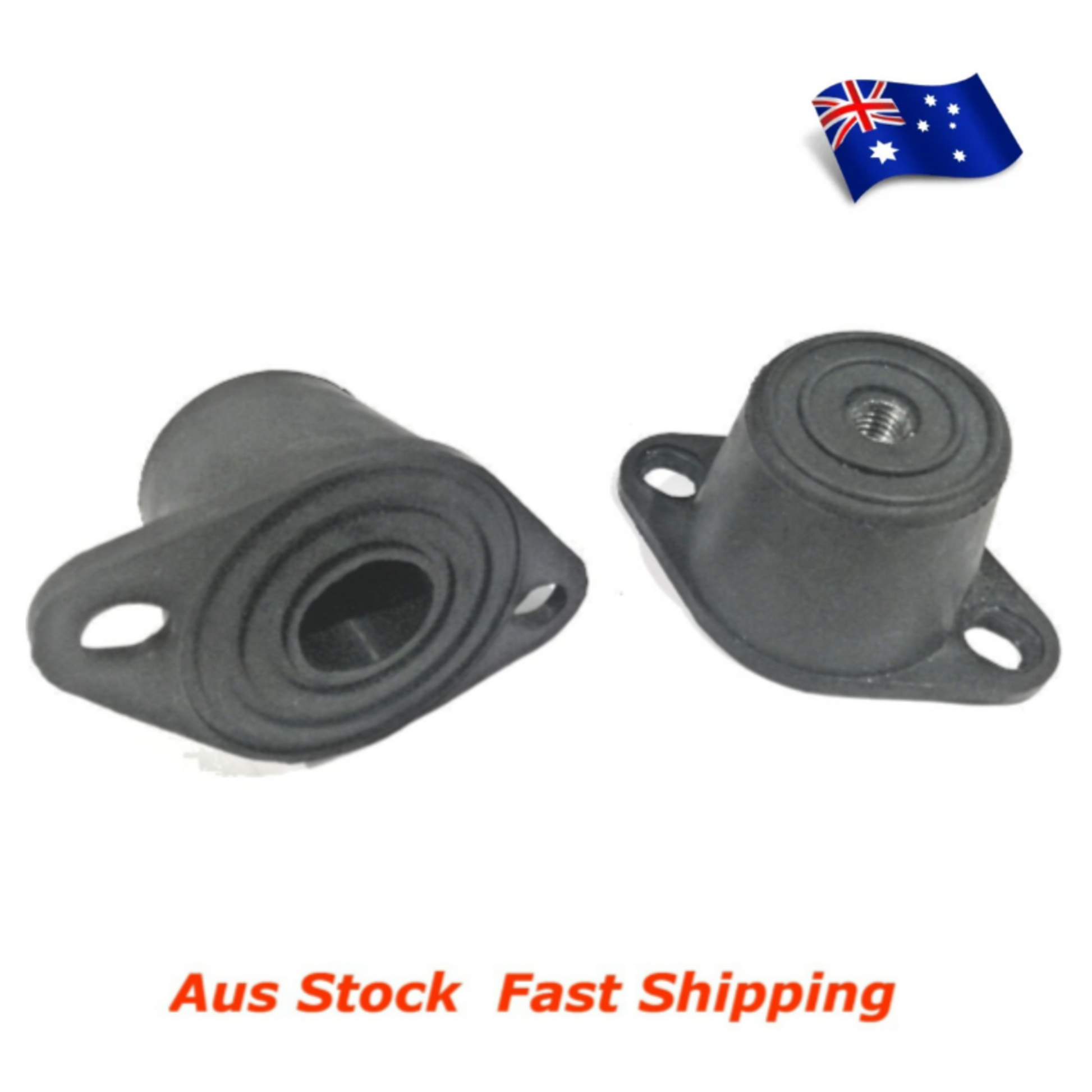

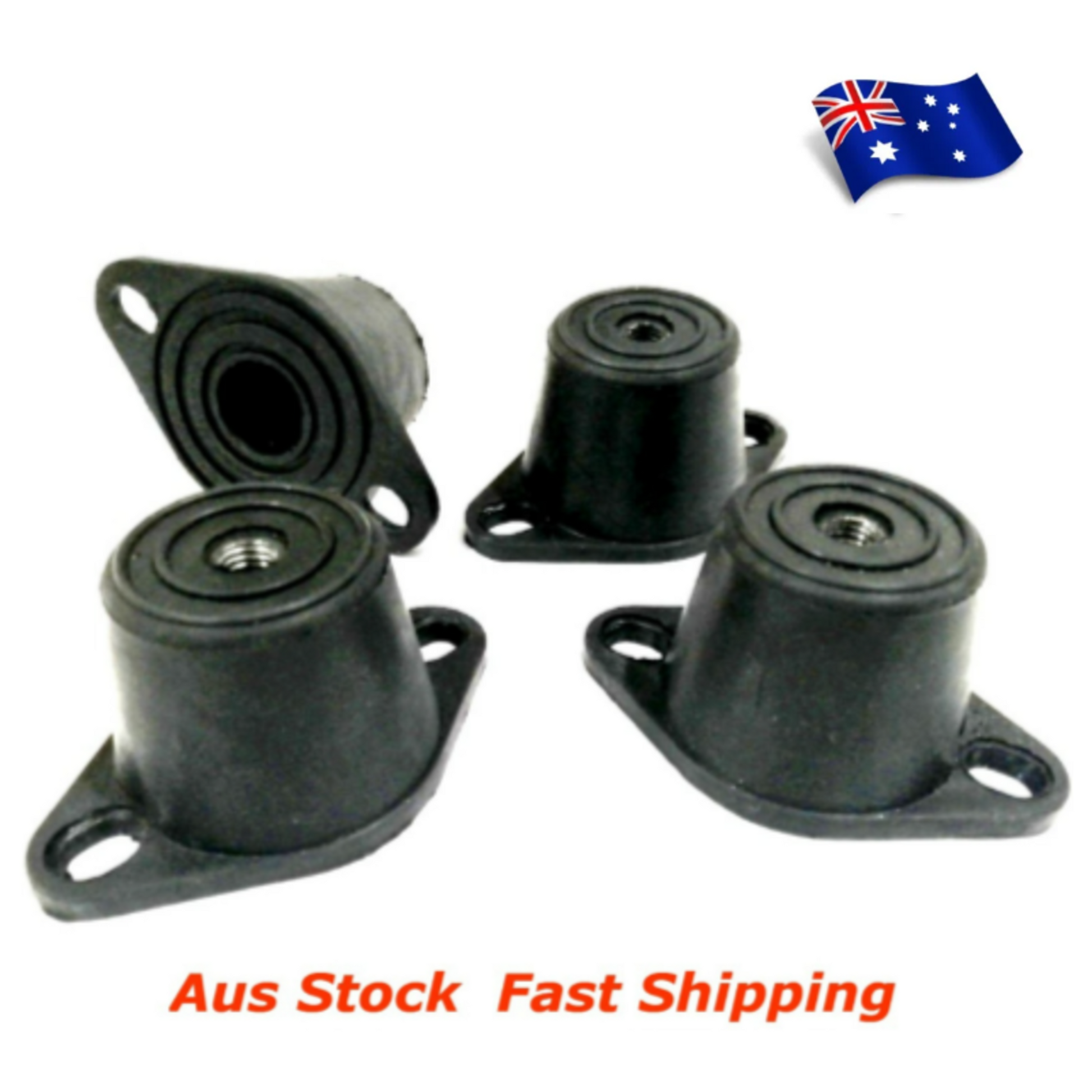

M10 Rubber Encapsulated Flange HVAC Anti Vibration Mount

M10 Rubber Encapsulated Flange HVAC Anti Vibration Mount

$25.99 AUD
$25.99 AUD
Sale Sold out
HVAC Anti Vibration Mount  M10 Insert
Designed for the HVAC industry rated for up to 225kg per mount
High levels of deflection, allowing for good levels of vibration reduction , even at low running speeds.
Encapsulated to reduce corrosion
Easy fixing with 2 X base mounting holes
  • What's in the box: 1 X rubber mount

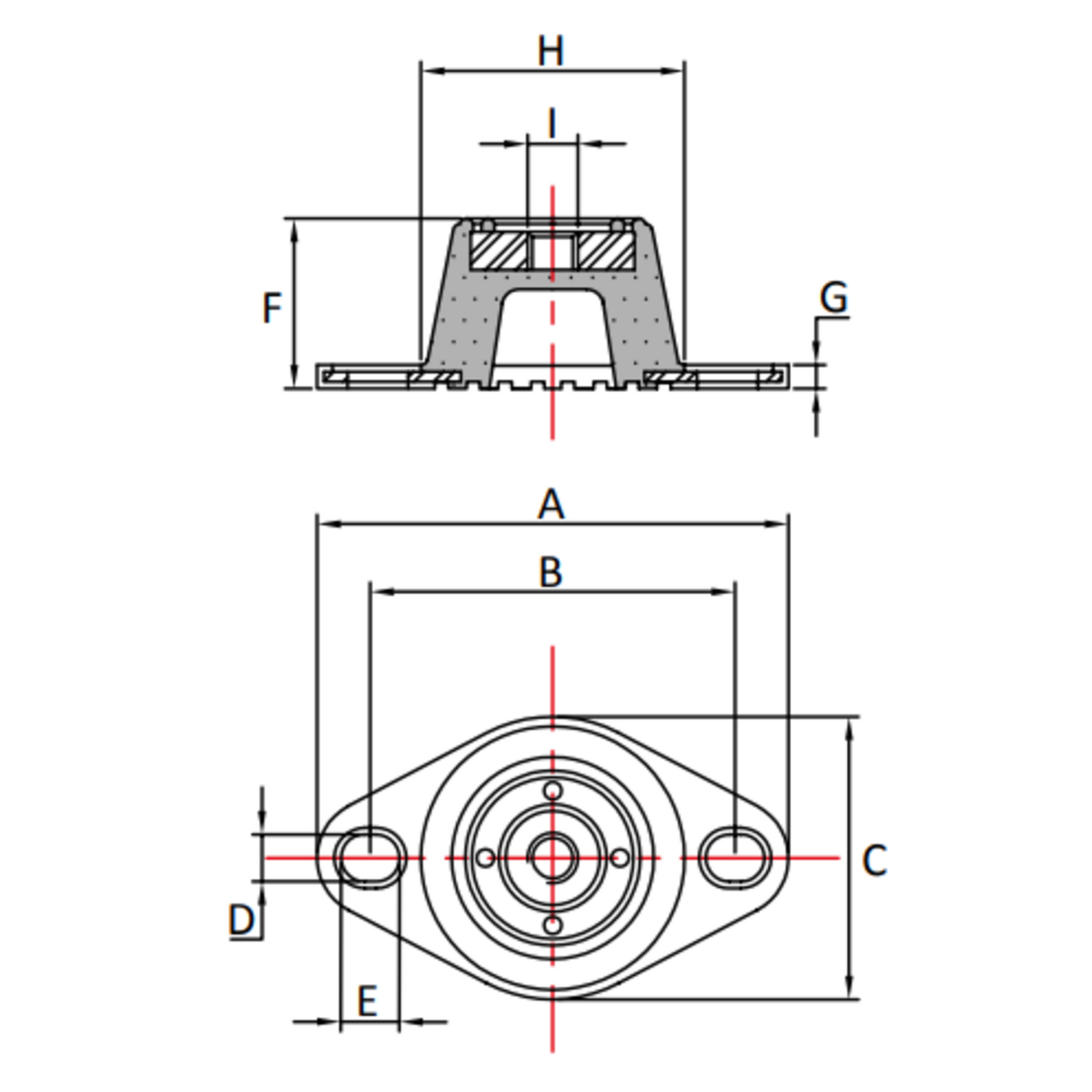

  • A: Base length 95mm
  • B: Distance between mounting holes 67-76mm
  • C: Flange width 60mm
  • D: Mounting hole width 9mm
  • E: Mounting hole length 14mm
  • F: Overall height 45mm
  • G: Flange thickness 5mm
  • H: Turret width at widest point 56mm
  • I: Mounting hole M10
  • Maximum compressive load: 225kg
  • Maximum Deflection: 10mm
  • Hardness Shore: A 55
  • Please note: All specifications shown herein are typical values and are not guaranteed. It is recommended to test in application for suitability.
